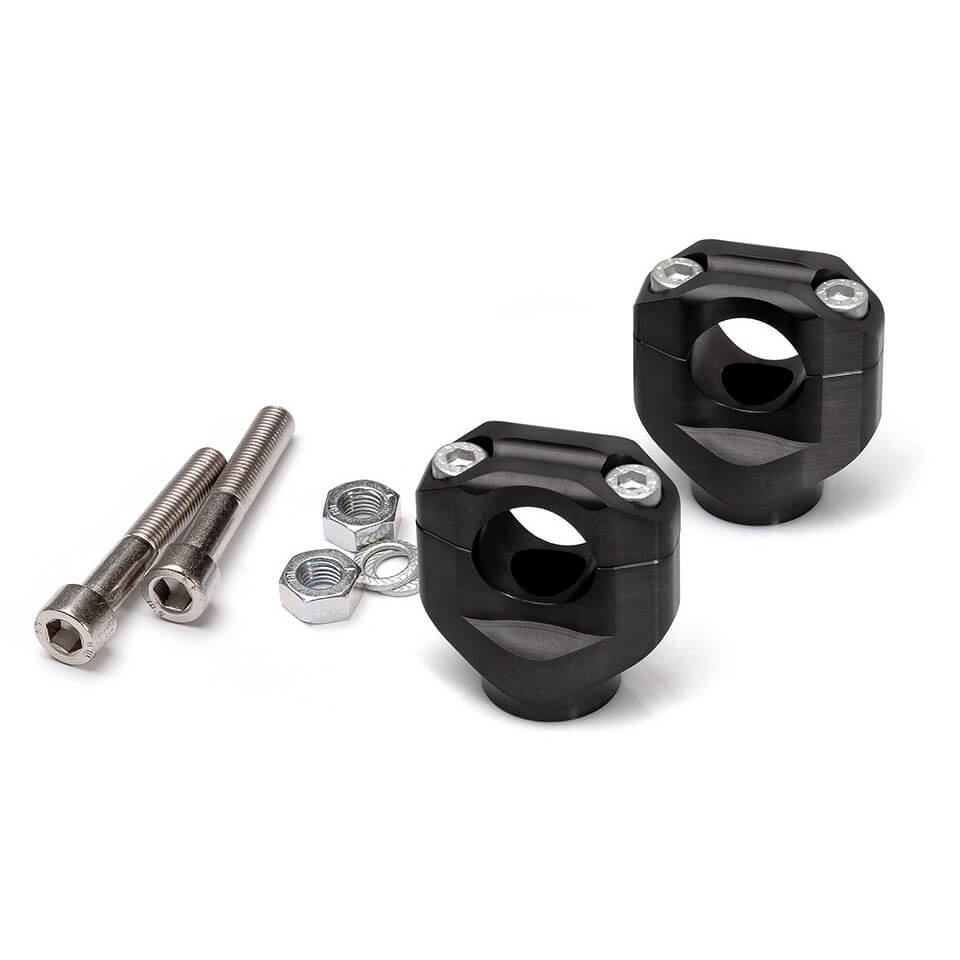

LSL X-Bar clamps model-specific for LSL X-Bar handlebars (28.6 mm)
- Not for use with the original handlebar! -

Material: aluminum
Material treatment: CNC machined, anodized
Fixing: At original mounting points
Dimensions: 28.6 mm clamping, for handlebars with a Ø of 28.6 mm

Our model-specific X-Bar clamping blocks are mounted at the original mounting points. So can be mounted on many models with original handlebar (22.2 mm) an X-Bar handlebar (28.6mm). The clamps are CNC machined from high quality solid aluminum. They replace the series clamps to achieve a different height and a better look. Models with standard rubber mounts retain them.

LSL X-Bar handlebar 28.6 mm:
- X00: grip position 10mm lower.
- X01: Handle position 20mm higher, 15mm closer.
- XN1: Handle position 10mm higher, 10mm closer.

CAUTION IMPORTANT NOTE:
- The use of the original handlebar is not possible with this clamp.
- The clamp block is only in conjunction with a LSL handlebar registration-free.
- Please check before ordering, whether the vehicle intended for the conversion is listed in the ABE attached here with!
- For each vehicle there are different specified handlebar designs and constraints that require modifications to the vehicle (e.g. longer lines or cables).
- In case of non-compliance with any conditions, the operating license for the vehicle expires!
- You can check in the ABE or in our motorcycle database, which handlebar is suitable.

Scope of delivery: 1 pair
