Kontrolspuldzes

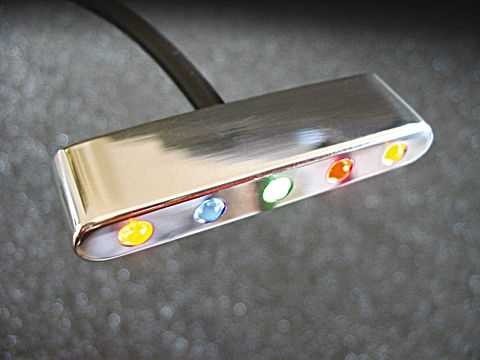

The motosign mini is the indicator lights unit accompanying the motoscope mini.It is extremely compact and features 5 colored LEDs. Series resistors are integrated.The casingThe high-quality aluminium casing is machined from a solid block using CNC technology and comes in anodized or mirror polished finish.Secure mounting with two threaded holes (M3) on back side.The components are completely moulded-in, the casing is water-tight and resistant to vibrations.Specifications and FeaturesLength, Hight, Depth: 46 x 7 x 13 mmWeight: approx. 18 g incl. cableNumber of LEDs: 5Operating voltage: 9 - 18 VOperating temperature: -20... + 70 Ā°CConnector cable length: approx. 50 cmMounted via two M3 threaded holes in the backLED colours:2 x green for turn signal left/right or 1 x turn signal and 1x hazard light1 x green for neutral1 x blue for high beam1 x red for hazard lightParts deliveredmotosign mini with approx. 50 cm connector cable (9 wires), connecting diagram. Note:Please note the two orange LEDs are replaced with green ones. (Pic 1 & 2)
