Virzienu releji

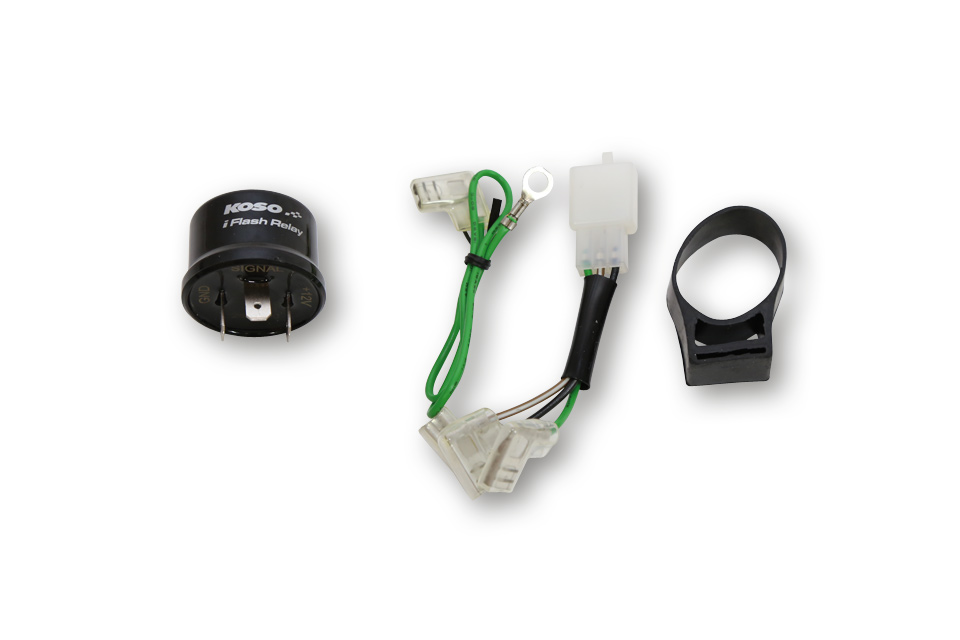

KOSO 3-pin universal flasher relay, 12V.The adaptive flasher relay can be calculate the wattage of the installed indicator. Well suited to installation contemporaneously LED and halogen bulbs or 4 LED indicator. The warning light feature is possible.Examples:2 x 10 Watt bulb indicator + 2 x LED indicator2 x 21 Watt bulb indicator + 2 x LED indicator4 x LED indicatorWarning light function is working.DimensionsDiameter: 37 mmHeight: 25 mmCable assignment:- 49 P = Battery input (12V +)- 31G = ground (-), (GND)- 49a L = Light (to indicator), (signal)- Voltage 12 V- Load range: 1 - 80 W- For Honda / Kawasaki / Yamaha adapter cable with 3-way plug connection- Relay connection:ā€¢ Black to P (power supply 49)ā€¢ Brown (49a) to L (signal)ā€¢ Green to 31(-) (GND)or:For vehicles with 3-way plug and 2 Pin connection (49, 49a)ā€¢ Green (separately) to GND (31) and mass vehicleFor vehicles with 3-way plug and 3 Pin connection (49, 49a, 31):ā€¢ installation green adapter plug connectorNote: Please, check, if the connections are correct.Delivery contents:1 x flasher relay1 x ground cable1 x adapter cable HO/KA/YA1 x rubber bracketmanual
