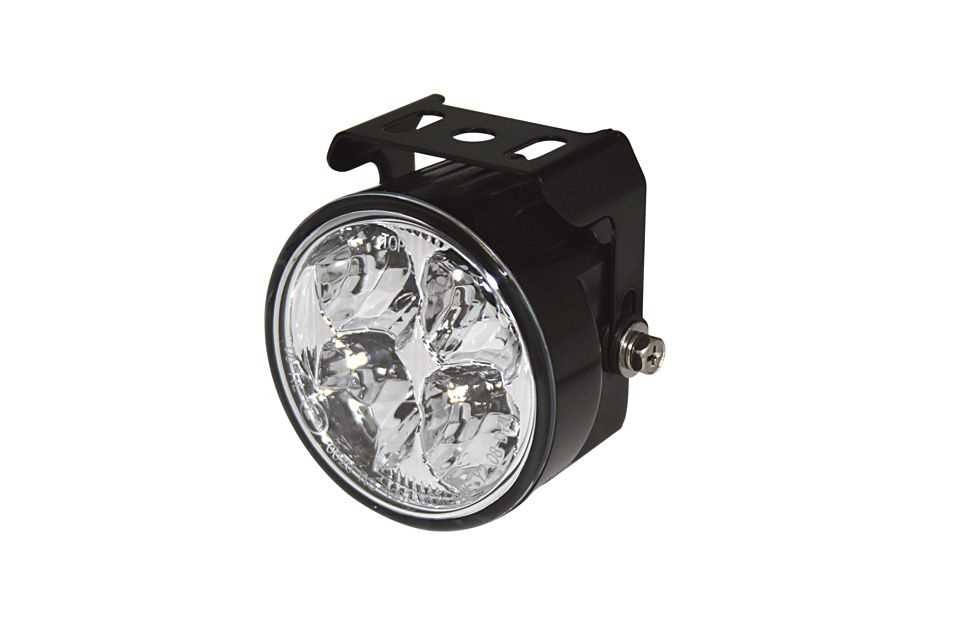

HIGHSIDER LED daytime running light
The LED daytime running light with 4 LEDs is built into a round, black-painted aluminium housing. The powerful LEDs significantly increase the perception ofmotorcyclists by other road users. Including universal holder, E-approved.

See and be seen - give your bike personality! The unusual design and the perfecttechnology of the HIGHSIDER headlamp series will definitely turn you into a sensational highlight!

Dimensions
Diameter: 71.5 mm
Depth: 47.5 mm

Technical data
Current consumption at12,5 Volt: only 0,2 Ampere (approx. 2,5 Watt)
Light current at 12 Volt: 150 Lumen

Connections
Black cable: ground (-)
Red cable = plus (+), is connected to switched plus (ignition).
White cable = is connected to the dipped beam control cable

Supplied with: 1 piece


Note 1 - with existing light switch:
Prerequisite for operation of daytime running light(TFL) is a manually switched dipped beam light (light switch), otherwise the function of the TFL would be cancelled.
According to the road traffic regulations the TFL must be connected in such a way thatgoes out when the main headlamp is switched on.
(Exception: Actuating the headlamp flasher). The rear tail light must always remain switched on, i.e. set to ignition plus.


Hint 2 - withoutexisting light switch:
The daytime running light can also be used on vehicles without a light switch. The following components, for example, are required:
Switch: Art. No. 240-044
HIGHSIDER DRLCONTROL- BOX CB1 : Art. No. 208-108 (switches between low beam and daytime running light)
